6. The Evolution of Traffic Management Systems

Over the past decade, the landscape of traffic management and vehicle access control has undergone a massive transformation. Initially, boom barrier gates were simple mechanical devices reliant on manual operation or basic push-button controls. Today, they represent the frontline of smart city infrastructure. Modern barrier gates are highly sophisticated electromechanical systems that leverage advanced microprocessors, precise encoder feedback loops, and robust communication protocols (such as RS485 and TCP/IP) to function seamlessly within larger, interconnected IoT ecosystems. This evolution has shifted the focus from mere physical deterrence to comprehensive data collection, revenue protection, and automated security enforcement. As urban populations grow and vehicle ownership increases, the demand for reliable, high-speed, and intelligent parking barriers has never been higher, prompting manufacturers to continuously innovate their motor technologies and control algorithms.

7. Technical Deep Dive: Motor Drives and Gearboxes

At the heart of every reliable boom barrier gate lies its drive mechanism. The traditional AC induction motor, paired with a worm gear reducer, has been the industry workhorse for years due to its simplicity and cost-effectiveness. However, these systems can suffer from overheating under high-frequency operation and often lack the precise speed control required for smooth boom movement. Enter the DC brushless motor technology. DC brushless barriers utilize electronic commutation instead of physical brushes, eliminating mechanical wear and drastically reducing maintenance requirements. Furthermore, when coupled with planetary gearboxes or direct-drive mechanisms, DC brushless motors offer exceptional torque, rapid acceleration, and precise deceleration profiles. This results in a "soft start" and "soft stop" motion that minimizes mechanical shock, extends the lifespan of the equipment, and prevents the "bouncing" effect commonly seen in older barrier arms.

8. The Crucial Role of Vehicle Detection Systems

A barrier gate cannot operate safely or autonomously without robust vehicle detection systems. The most ubiquitous technology in this domain is the inductive loop detector. By burying a coil of wire in the pavement beneath the barrier, the system detects the change in inductance caused by the metal mass of a passing vehicle. This signal is crucial for two main functions: automatically closing the gate once a vehicle has cleared the passage (auto-close), and preventing the boom arm from dropping onto a vehicle currently underneath it (anti-smash). In addition to loop detectors, modern systems increasingly employ microwave radar detectors and infrared photocells. Radar detectors offer the advantage of being non-intrusive (no cutting of pavement required) and can accurately distinguish between vehicles and pedestrians, adding an extra layer of safety in mixed-traffic environments.

9. Environmental Resilience and Housing Design

Boom barrier gates are predominantly installed outdoors, exposing them to harsh environmental elements 24/7. Therefore, the design and construction of the barrier housing (cabinet) are of paramount importance. High-quality manufacturers construct these housings from cold-rolled steel or aluminum alloy, typically ranging from 1.5mm to 2.0mm in thickness to withstand physical impacts. The metal surface undergoes a rigorous multi-step anti-corrosion process, including acid washing, phosphating, and electrostatic powder coating, followed by high-temperature baking. This process ensures the cabinet is highly resistant to UV radiation, heavy rain, and corrosive coastal air. Furthermore, the internal layout is designed to meet IP54 or IP65 ingress protection standards, safeguarding the sensitive electronic control board and motor from dust and water penetration. Internal heating modules or cooling fans can also be integrated for extreme climate deployments.

10. The Future: AI, Cloud Integration, and Sustainability

Looking ahead, the future of boom barrier gates is intrinsically linked to Artificial Intelligence and cloud computing. The integration of edge AI computing directly into License Plate Recognition (LPR) cameras allows for instantaneous vehicle identification with 99.9% accuracy, even in challenging lighting conditions or with non-standard plates. These AI-driven systems communicate in real-time with cloud-based parking management platforms, enabling centralized control of multiple parking facilities from a single dashboard. Administrators can monitor gate status, update access whitelists, and generate revenue reports remotely. Additionally, sustainability is becoming a key driver in product design. Low-power consumption DC motors and the integration of solar power kits are making barrier gates more energy-efficient and suitable for remote locations lacking stable grid infrastructure. As a leading manufacturer, we remain at the forefront of these technological advancements, continuously refining our product lineup to meet the complex demands of the modern access control industry.

1. What is a Boom Barrier Gate and how does it work?

A boom barrier gate, also known as a boom gate, is a bar or pole pivoted to allow the boom to block vehicular access through a controlled point. Typically, the tip of a boom gate rises in a vertical arc to a near-vertical position. Boom gates are often counterweighted, so the pole is easily tipped. They are powered by an electric motor (AC or DC brushless) and controlled by an access control system, which can include RFID readers, ticket dispensers, or License Plate Recognition (LPR) cameras. When an authorized vehicle approaches, the control system sends a signal to the motor to lift the barrier, allowing passage.

2. How do I choose the right Boom Barrier for my facility?

Choosing the right boom barrier depends on several factors: the width of the entrance, the volume of traffic, and the level of security required. For standard residential complexes or small office buildings, a standard AC motor barrier with a 3 to 4-meter straight arm is usually sufficient. For high-traffic areas like toll booths or busy commercial parking lots, a high-speed DC brushless barrier or servo motor barrier is recommended due to its rapid opening speed (as fast as 0.6 seconds) and high durability. If your facility has height restrictions, such as an underground parking garage, an articulated (folding) arm is necessary. For enhanced security against pedestrian intrusion, a fence arm is the best choice.

3. What are the advantages of DC Brushless Motors over traditional AC Motors?

DC brushless motors offer several significant advantages over traditional AC induction motors. Firstly, they provide a much higher cycle life, often exceeding 5 million cycles, because they lack physical brushes that wear out over time. Secondly, they allow for precise speed control, enabling a 'soft start' and 'soft stop' mechanism that reduces mechanical stress and prevents the boom arm from bouncing. Thirdly, DC brushless motors run cooler and are more energy-efficient, making them ideal for continuous, heavy-duty operation. They can also be easily integrated with solar power systems or battery backups for operation during power outages.

4. How does License Plate Recognition (LPR) integrate with Barrier Gates?

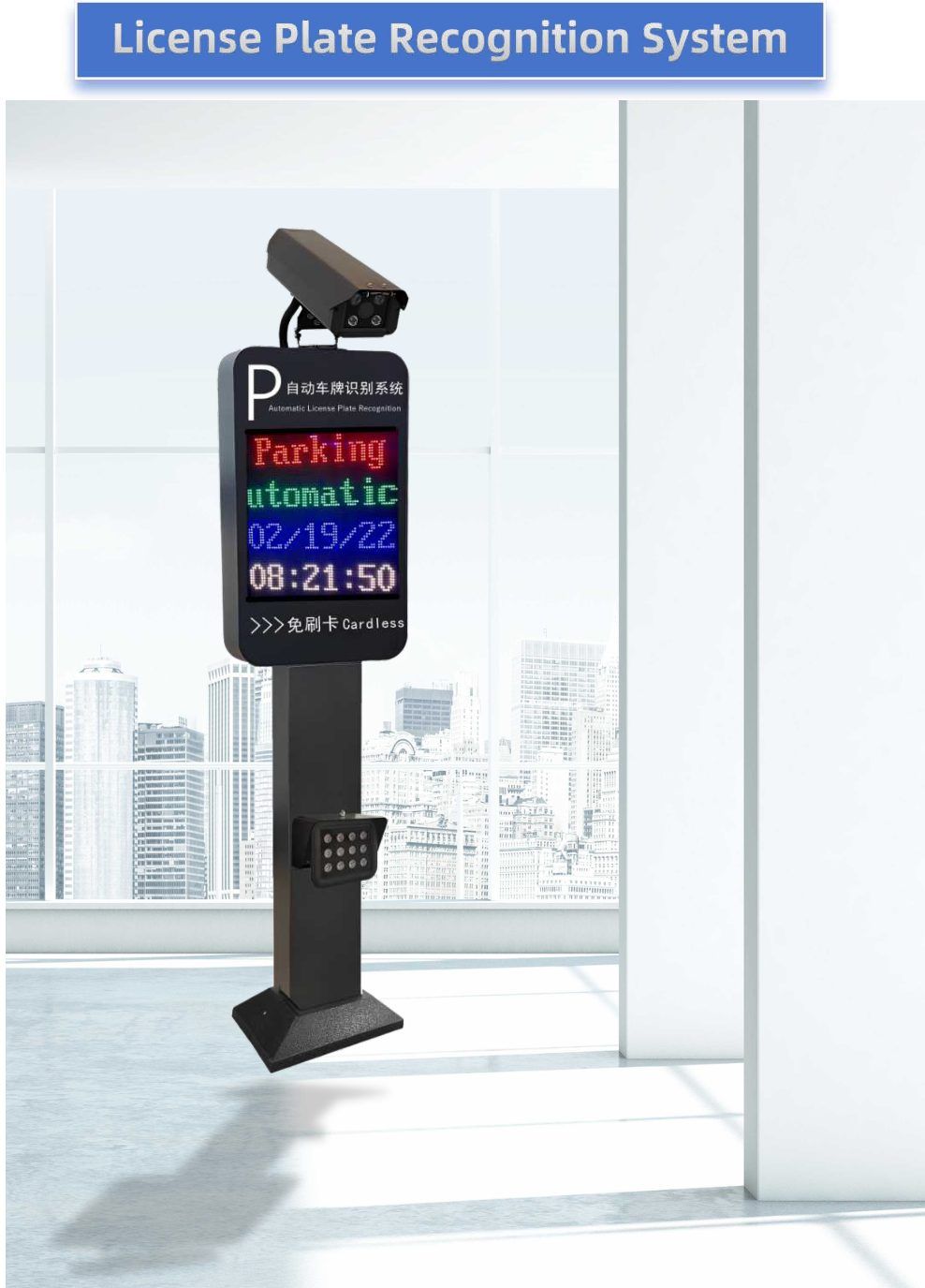

License Plate Recognition (LPR) systems integrate seamlessly with our boom barrier gates to provide a frictionless parking experience. An LPR camera captures an image of the vehicle's license plate as it approaches the gate. The system's software processes the image, extracts the alphanumeric characters, and compares them against a database of authorized or registered vehicles. If a match is found, the LPR system sends a relay signal to the barrier gate's control board to open the gate automatically. This eliminates the need for physical tickets or access cards, reducing wait times and improving overall traffic flow. Our control boards support standard relay inputs, making them compatible with virtually any LPR system on the market.

5. What maintenance is required for a Boom Barrier Gate?

Regular maintenance is essential to ensure the longevity and reliable operation of a boom barrier gate. Key maintenance tasks include: visually inspecting the boom arm for physical damage or loose reflective tape; checking the balance of the counterweight spring and adjusting it if necessary; lubricating moving parts such as hinges and gearboxes (if applicable); inspecting the control board for any loose wire connections or signs of moisture ingress; and testing safety devices like loop detectors and infrared photocells to ensure they are functioning correctly. For DC brushless barriers, maintenance is generally lower, but periodic checks of the motor and encoder connections are still recommended.

6. Are your Barrier Gates weatherproof and suitable for outdoor installation?

Yes, all our boom barrier gates are designed for robust outdoor performance. The main housing cabinet is constructed from high-quality cold-rolled steel or aluminum alloy, treated with a multi-step anti-corrosion process, and finished with a durable, UV-resistant electrostatic powder coating. The internal components are sealed to meet IP54 or IP65 ingress protection ratings, ensuring they are fully protected against dust, rain, and snow. Additionally, our control boards are designed to operate in extreme temperature ranges, typically from -30°C to +70°C. For extremely cold environments, optional internal heating modules can be installed.

7. Can the Barrier Gate automatically reverse if it hits an obstacle?

Absolutely. Safety is our top priority. Our barrier gates are equipped with an auto-reverse upon obstacle detection feature. If the boom arm encounters resistance while lowering (e.g., hitting a vehicle or a person), the motor's encoder or a pressure sensor detects the sudden increase in load and immediately reverses the motor, causing the arm to lift back up. Furthermore, we highly recommend installing external safety devices such as inductive loop detectors or infrared photocells, which prevent the arm from lowering in the first place if a vehicle or pedestrian is detected in the barrier's path.

Our boom barrier gates and access control systems are highly adaptable, providing tailored security and traffic management solutions across a wide range of industries and environments. Below are some of the primary application scenarios where our technology excels.

Commercial Office Buildings & Corporate Campuses

In corporate environments, managing employee parking and visitor access is critical. Our DC brushless barrier gates, integrated with UHF RFID readers and License Plate Recognition (LPR) systems, allow employees to enter seamlessly without stopping, ensuring a smooth flow of traffic during peak morning and evening hours. For visitors, integration with ticketing dispensers and intercom systems provides a secure and verifiable entry process.

Residential Communities & Apartment Complexes

Security and peace of mind are paramount in residential areas. Our standard AC and DC barrier gates are frequently deployed at the main entrances of gated communities. Equipped with anti-smash technologies (like inductive loops and infrared sensors), they ensure the safety of residents' vehicles. Additionally, our barrier gates operate quietly, minimizing noise pollution for nearby apartments.

Highway Toll Plazas

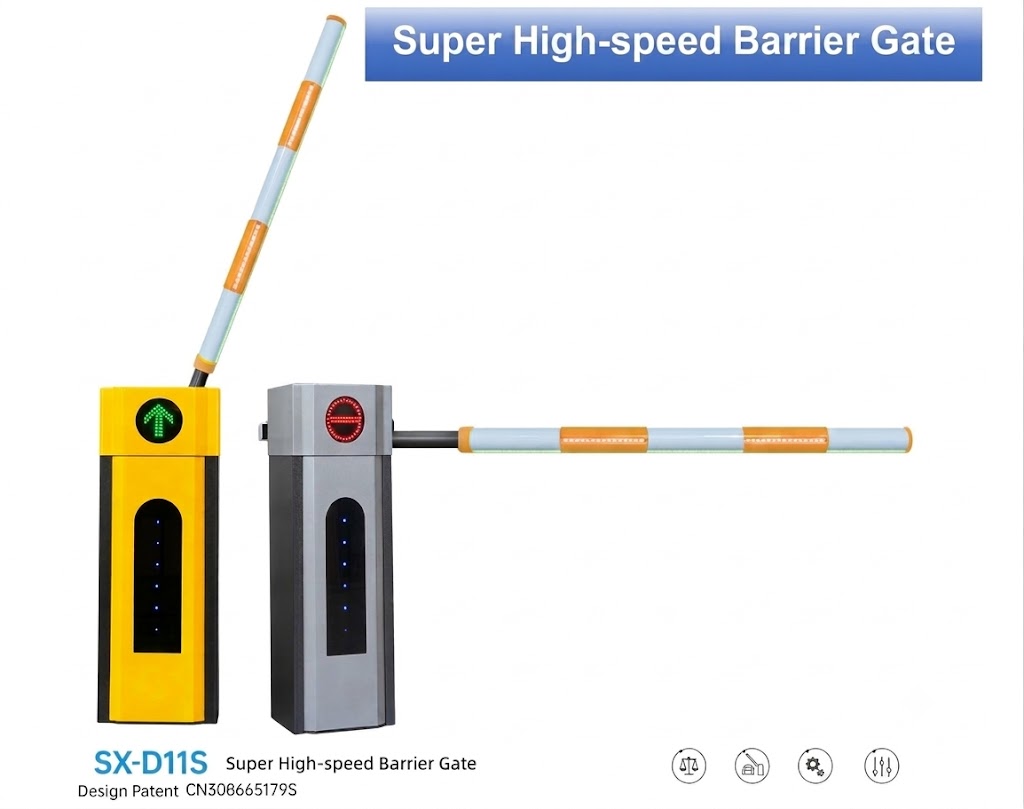

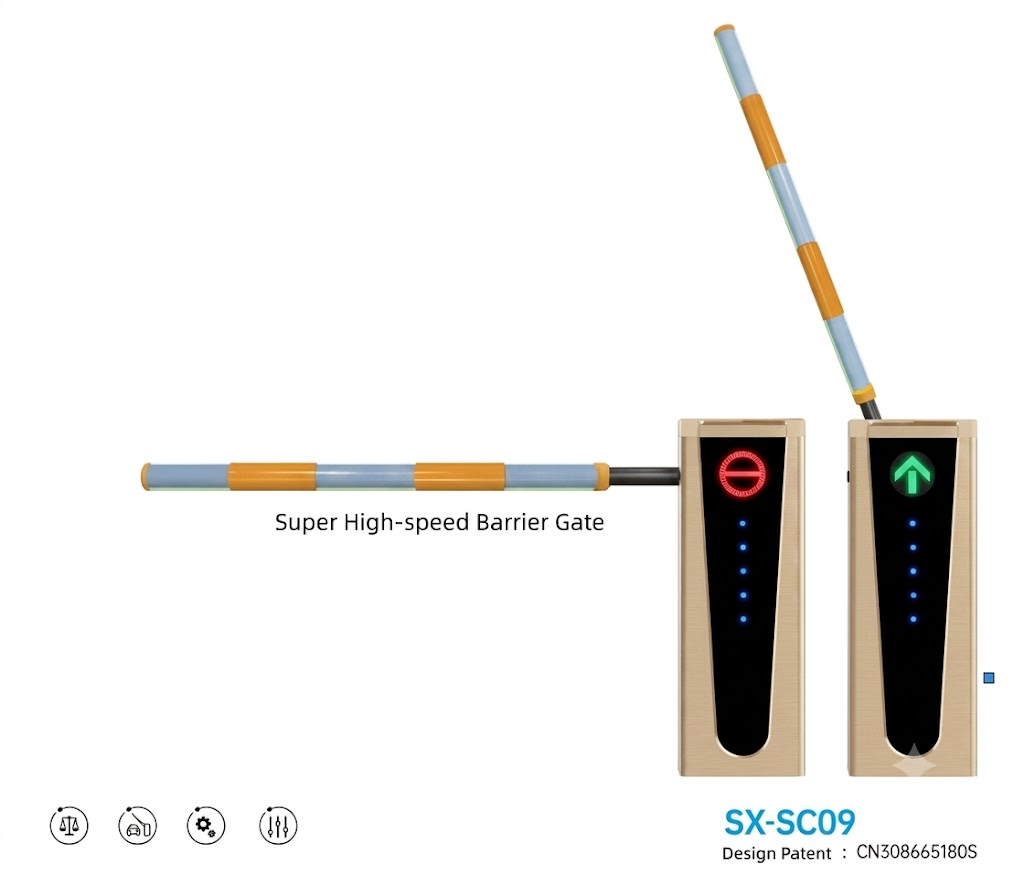

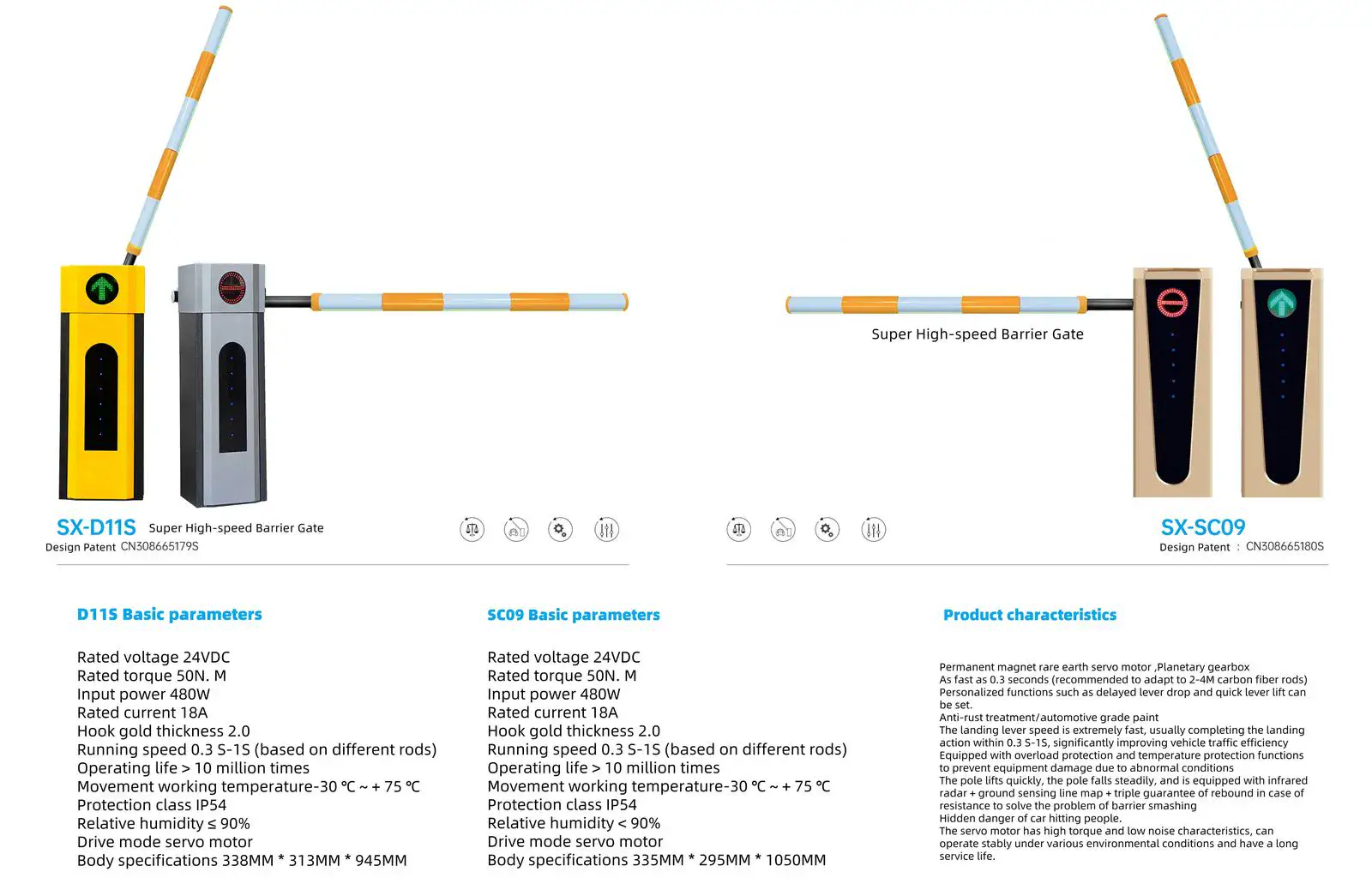

Toll stations require equipment that can withstand extreme high-frequency operation and deliver lightning-fast opening speeds. Our servo-driven high-speed barrier gates are specifically engineered for these demanding environments. Capable of opening in as little as 0.3 to 0.6 seconds and boasting a Mean Cycles Between Failures (MCBF) of up to 10 million, they prevent traffic bottlenecks and ensure continuous revenue collection without hardware failure.

Shopping Malls & Retail Parking Lots

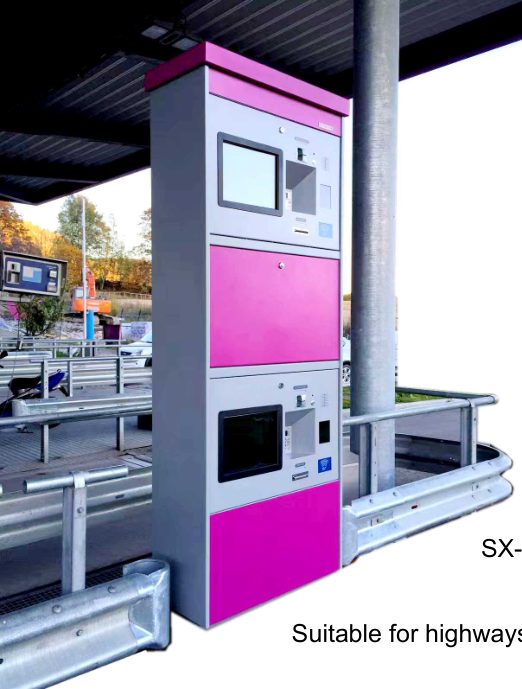

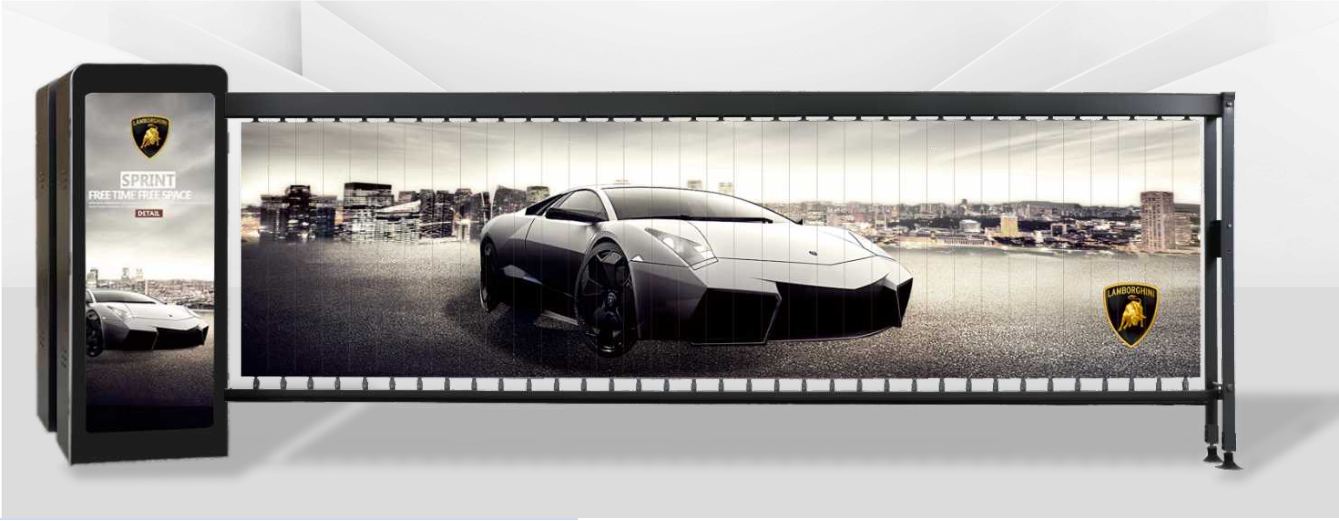

Retail parking facilities need to balance security with customer convenience. Our barrier gates seamlessly connect with automated payment machines and parking guidance systems. Furthermore, we offer Advertising Barrier Gates, which feature a backlit display panel on the boom arm. This allows mall operators to monetize the access point by displaying dynamic advertisements to every entering and exiting vehicle.

Industrial Facilities & Logistics Parks

Logistics hubs and factories experience heavy traffic from large trucks and commercial vehicles. For these sites, we recommend our heavy-duty fence boom barriers. The multi-tier fence structure not only controls vehicular access but also acts as a physical deterrent against unauthorized pedestrian entry. The robust housing and reinforced motors are designed to operate reliably in dusty, harsh industrial environments.

Hospitals & Healthcare Facilities

Hospitals require strictly controlled parking zones for staff, patients, and emergency vehicles. Our barrier gates can be programmed to provide priority access for ambulances (via emergency override switches) while systematically managing visitor parking through integrated payment kiosks. The reliability of our BLDC motors ensures that emergency access is never compromised.
