Modern Access Control
BOOM BARRIER GATE FACTORY offers wing gates, swing gates, and high-speed access gates for offices, metro stations, and secure facilities. All models use SUS304 brushed stainless steel with a 5 million cycle lifespan, 10mm acrylic panels, and support RS485/232, TCP/IP, and face recognition integration.
Pedestrian Access Gate
Wing gates, swing gates, and high-speed access gates for offices, metro stations, and secure facilities. All SUS304 brushed stainless steel with >5 million cycle life.
Model #1
Wing Gate
| Wing Gate | |
| Chassis material | SUS304 brushed stainless steel |
| Dimensions | 1000(H)x1400(L)x180/280(W)mm |
| Passage width | 550-1200mm |
| Ambient humidity | 95% (no condensation) |
| Operating voltage | AC220V±10%50Hz |
| Operating temperature | -30℃-+75℃ |
| Panel material | 10mm acrylic |
| Power consumption | 120W |
| Passing speed | 20-35 people/minute |
| Operation lifespan | 5 million cycles |
| Infrared pairs | 4 pairs |
| Communication interfaces | RS485/232, TCP/IP |
| Voice | support buzzer alerts, supports Chinese/English prompts |
| Protection rating | IP24 |
Model #2

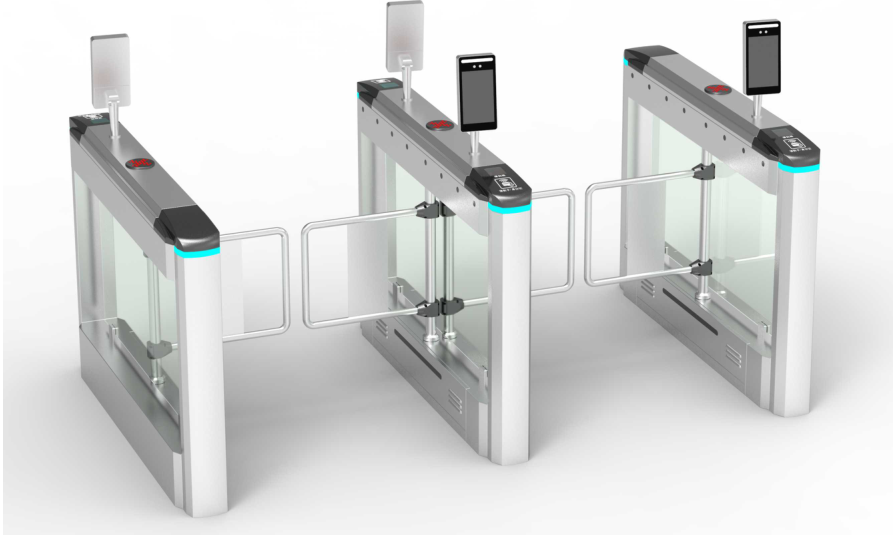

Swing Gate
| --- | |
| Swing Gate | |
| Chassis Material | SUS304 Brushed Stainless Steel |
| Dimensions | 980(H) x 1400(L) x 180(W) mm |
| Passage Width | 550-1200 mm |
| Ambient Humidity | 95% (Non-condensing) |
| Operating Voltage | AC220V±10% 50Hz |
| Operating Temperature | -30℃ to +75℃ |
| Panel Material | 10mm Acrylic |
| Power Consumption | 120W |
| Passing Speed | 20-35 people/minute |
| Operation Life | 5 million cycles |
Model #3

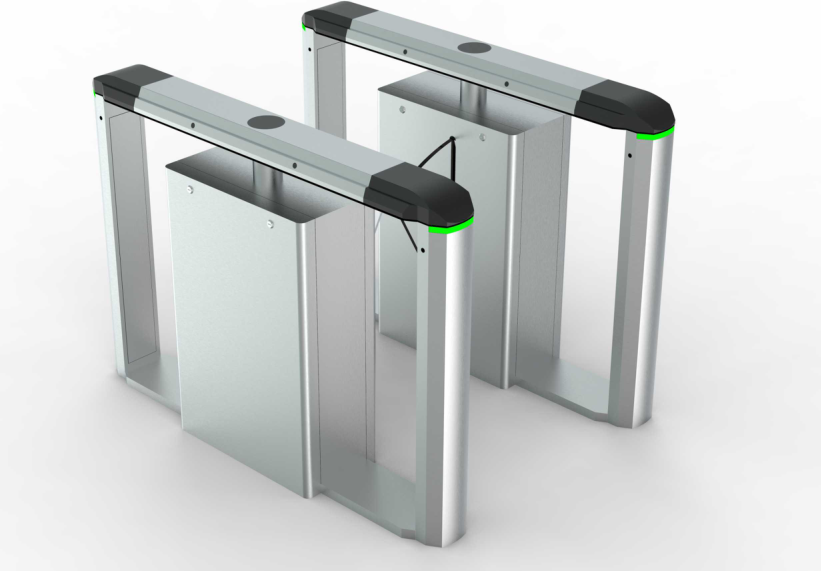

High-Speed Access Gate
| Infrared Pairs | 4 pairs |
| Communication Interface | RS485/232, TCP/IP |
| Voice | Supports buzzer alerts, Chinese and English prompts |
| Protection Rating | IP24 |
| --- | |
| High-speed Access Gate | |
| Chassis material | Brushed SUS304 stainless steel |
| Dimensions | 1000(H) x 1400(L) x 180(W) mm |
| Passage width | 550-900 mm |
| Ambient humidity | 95% (no condensation) |
| Operating voltage | AC220V±10% 50Hz |
| Operating temperature | -30℃ to +75℃ |
| Panel material | 10mm acrylic |
| Power consumption | 120W |
| Passing speed | 30–45 persons/minute |
| Operating lifespan | 5 million cycles |
| Infrared pairs | 4 pairs |
| Communication interfaces | RS485/232, TCP/IP |
| Voice | Supports buzzer alerts, supports Chinese/English prompts |
| Protection rating | IP24 |
